High-speed Shear Test
The high speed test regime requires an area in which the tool can accelerate before contacting the BGA ball, This is achieved by retracting the sample holder to an automatically calculated distance according to the speed chosen,Thus ,non-test balls must be cleared prior to the test.

High-speed Cold Bump Pull Test
Using the TRY-PRECISION patent technology, a special clamping device, to achieve the energy conversion in the horizontal direction to the vertical direction of the highspeed force test;

Data Analvsis

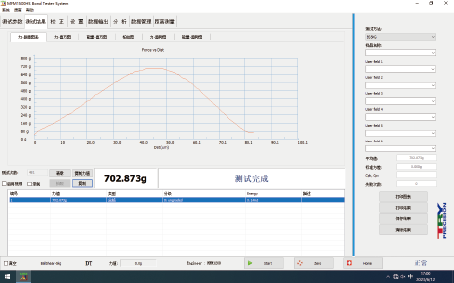

High sampling with wide bandwidth, high accuracy measurement; providing Force VS Distance Graph, Force VS Time Graph, Fracture Energy and other indicators.

* Brittle fracture joint analysis
* Alternative to drop testing
* Lead-free solder joint evaluation
* BGA, CSP,PiP,PoP,SiP solder joint testing
* lmpact testing applications
* Pad finish and substrate evaluation
* Zone shear-testing multiple ball bonds simultaneously
